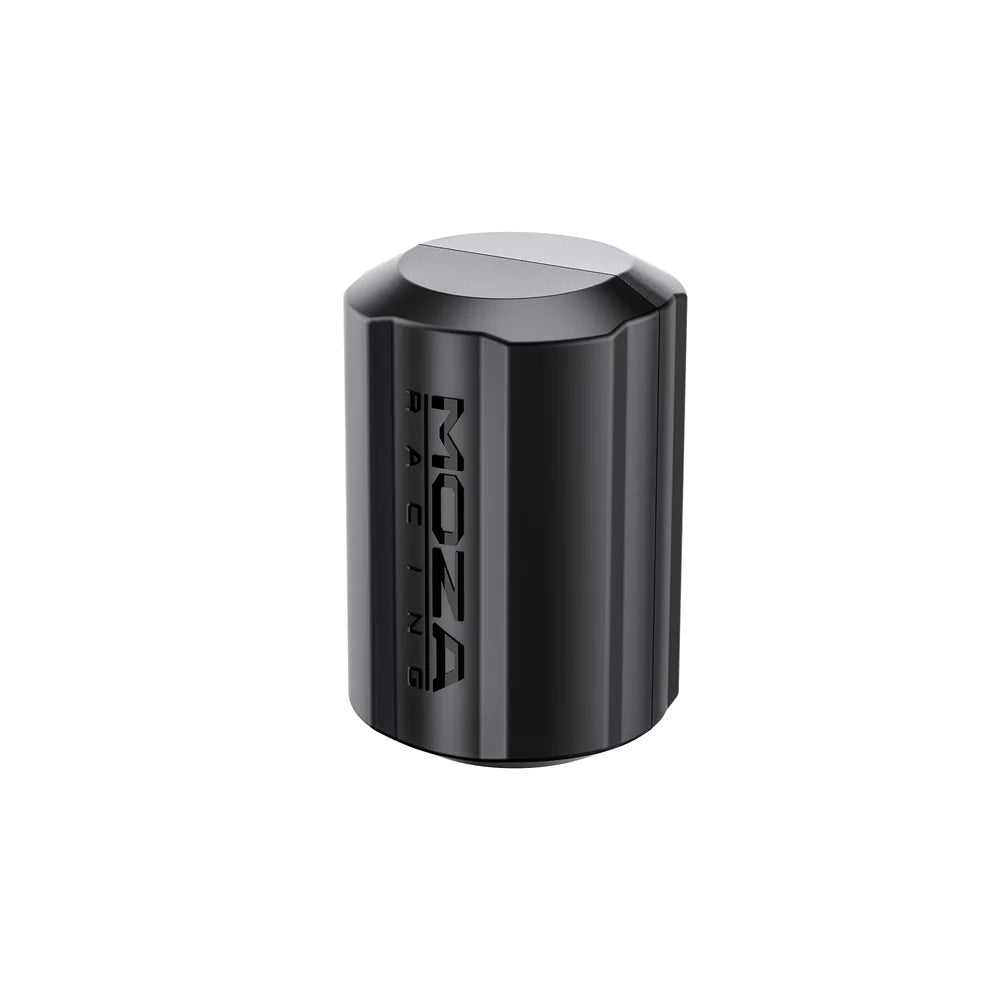

MOZA Pedal Haptic Feedback Module

Expand your pedal haptic setup with a single MOZA PHF Pedal Haptic Feedback Module.

Its high-performance motor delivers precise, customizable feedback from 0 to 100 Hz, reproducing effects such as ABS, traction control, engine RPM, wheel lock-up, wheel slip, and gear shifts.

The compact module can be installed on a throttle, brake, or clutch pedal and is compatible with:
 - MOZA SRP pedals
 - MOZA SRP Lite pedals
 - MOZA SRP2 pedals
 - MOZA CRP2 pedals

A MOZA PHF Control Box is required for operation and is not included. If you do not already own a Control Box, choose the MOZA Pedal Haptic Feedback Kit.

• High-Performance Motor
  Powered by a high-performance motor capable of frequencies up to 100 Hz, the MOZA PHF Pedal Haptic Feedback Module delivers more detailed, responsive, and precise haptic feedback than conventional 50 Hz solutions.

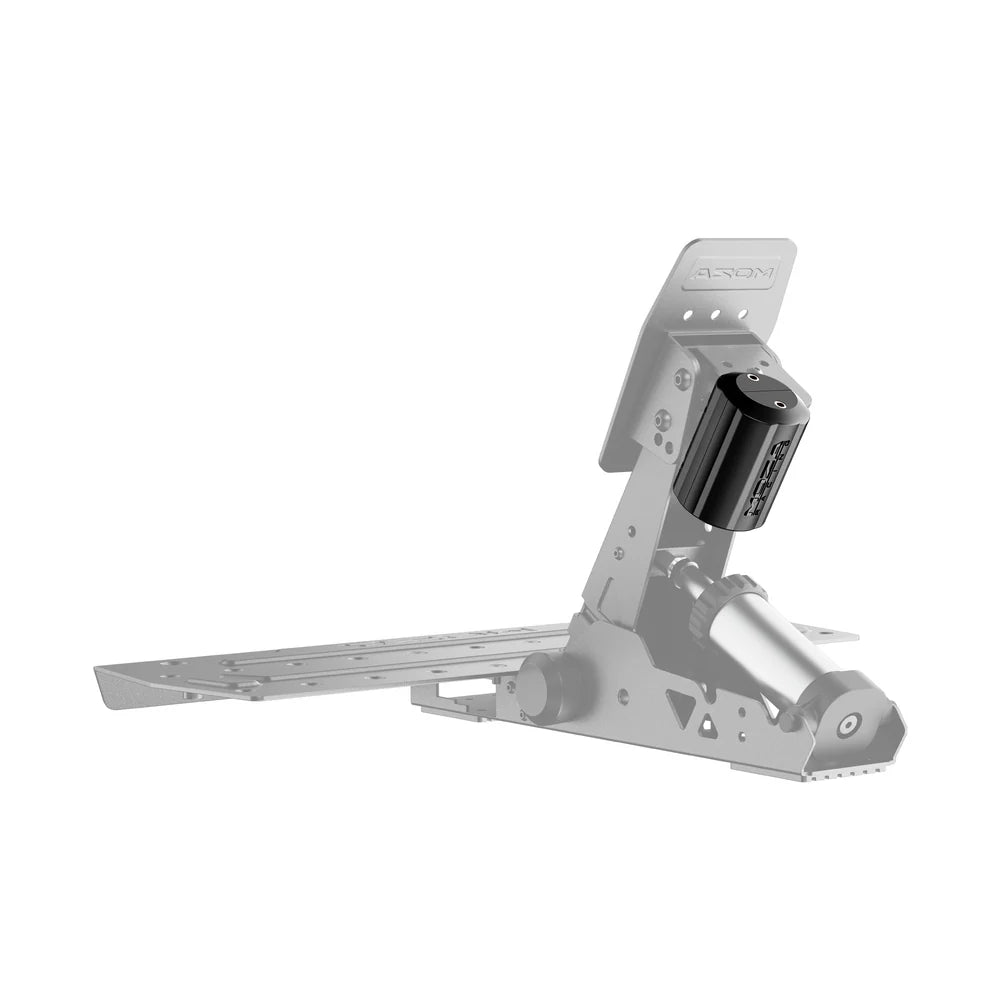

• Compact & Easy to Install
  Its compact form factor makes installation easy, with support for throttle, brake, and clutch pedals.
• Broad Pedal Compatibility
  Compatible with MOZA’s full range of non-active pedal sets, including the SR-P, SR-P Lite, SRP2, SRP Lite2 and CRP2.
• Independent Control Box
  A dedicated control box manages the haptic module and supports signal transmission either through a direct PC connection or via a compatible MOZA wheelbase.
• Pit House Smart Tuning
  Supports a wide range of telemetry-based effects, including ABS, traction control, engine RPM, wheel lock-up, wheel slip, and gear shifts. Both vibration frequency (0–100 Hz) and intensity (0–100%) can be fully customized to suit individual preferences.
• High-Strength Integrated Mounting Bracket
  Featuring a high-strength integrated mounting bracket, the module remains securely mounted during intense braking and high-load driving conditions.
• Open Ecosystem
  By connecting directly to a PC through the control box, the haptic module can be integrated with third-party non-active pedal sets using custom user-designed mounting solutions.

Specifications:

• Compatible Pedals: SR-P Pedals, SRP2 Pedals, CRP2 Pedals, SR-P Lite Pedals
• Supported Software: MOZA Pit House
• PHF Module Dimensions: 40 × 41 × 61 mm
• Net Weight: 98 g

Includes:

• MOZA Pedal Haptic Feedback Module
