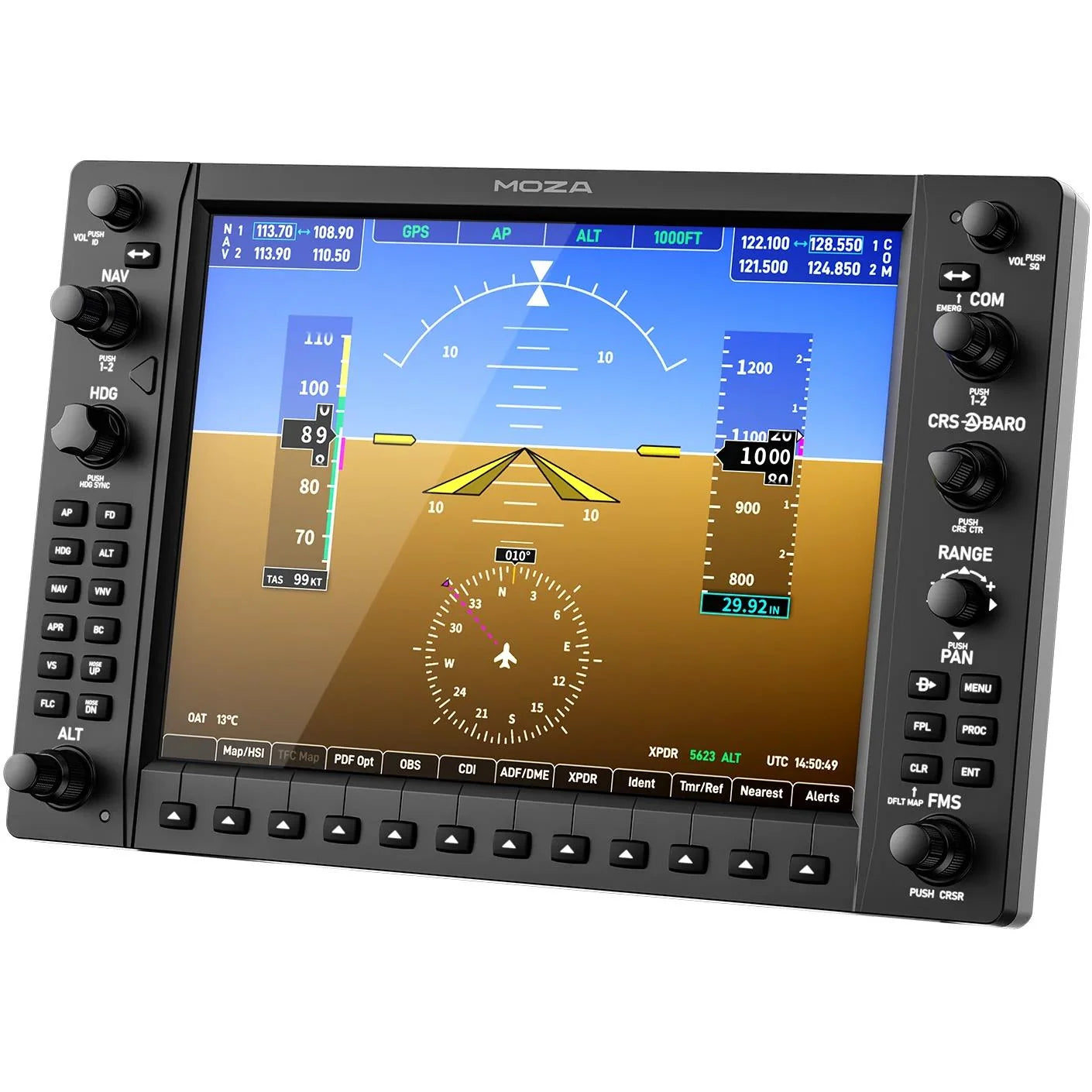

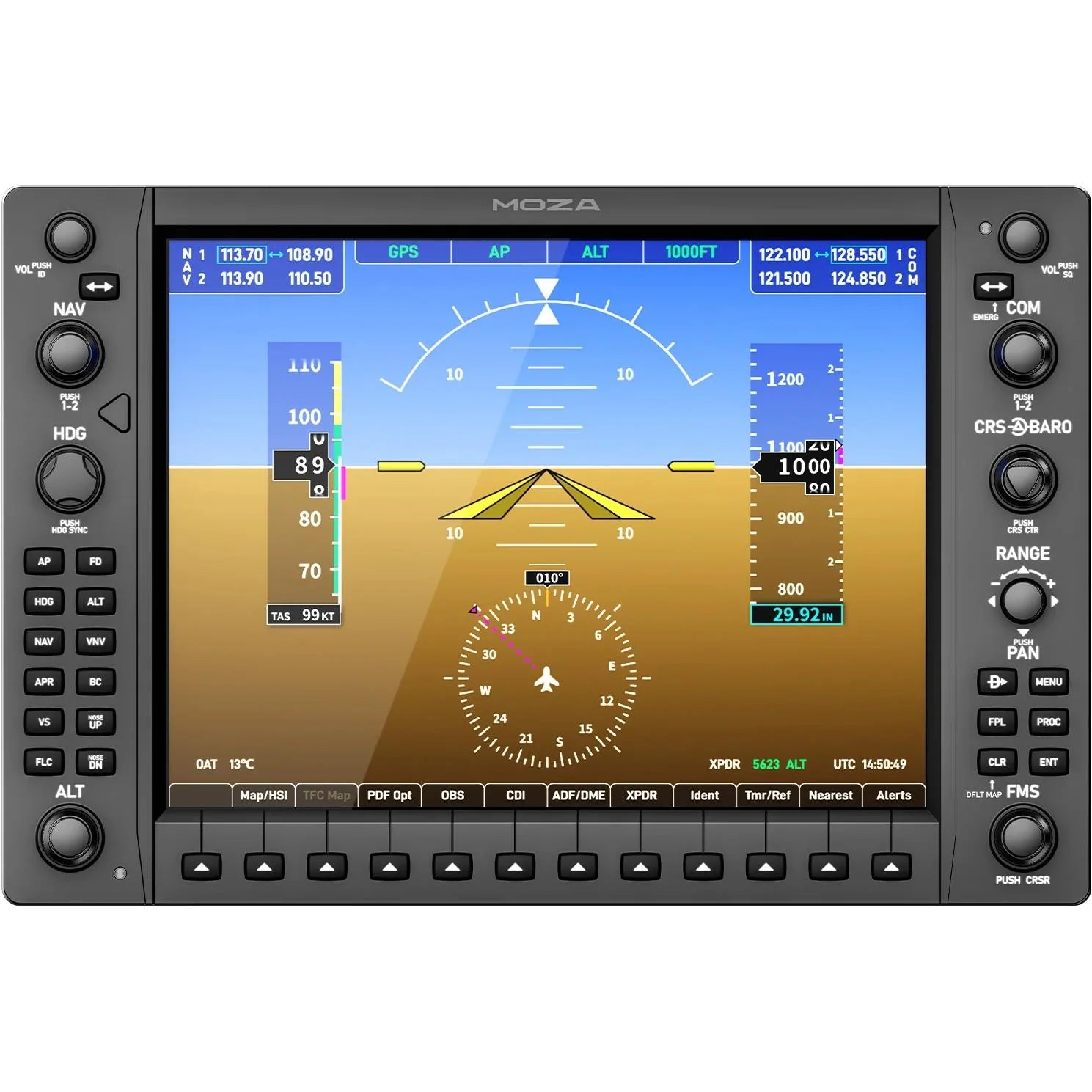

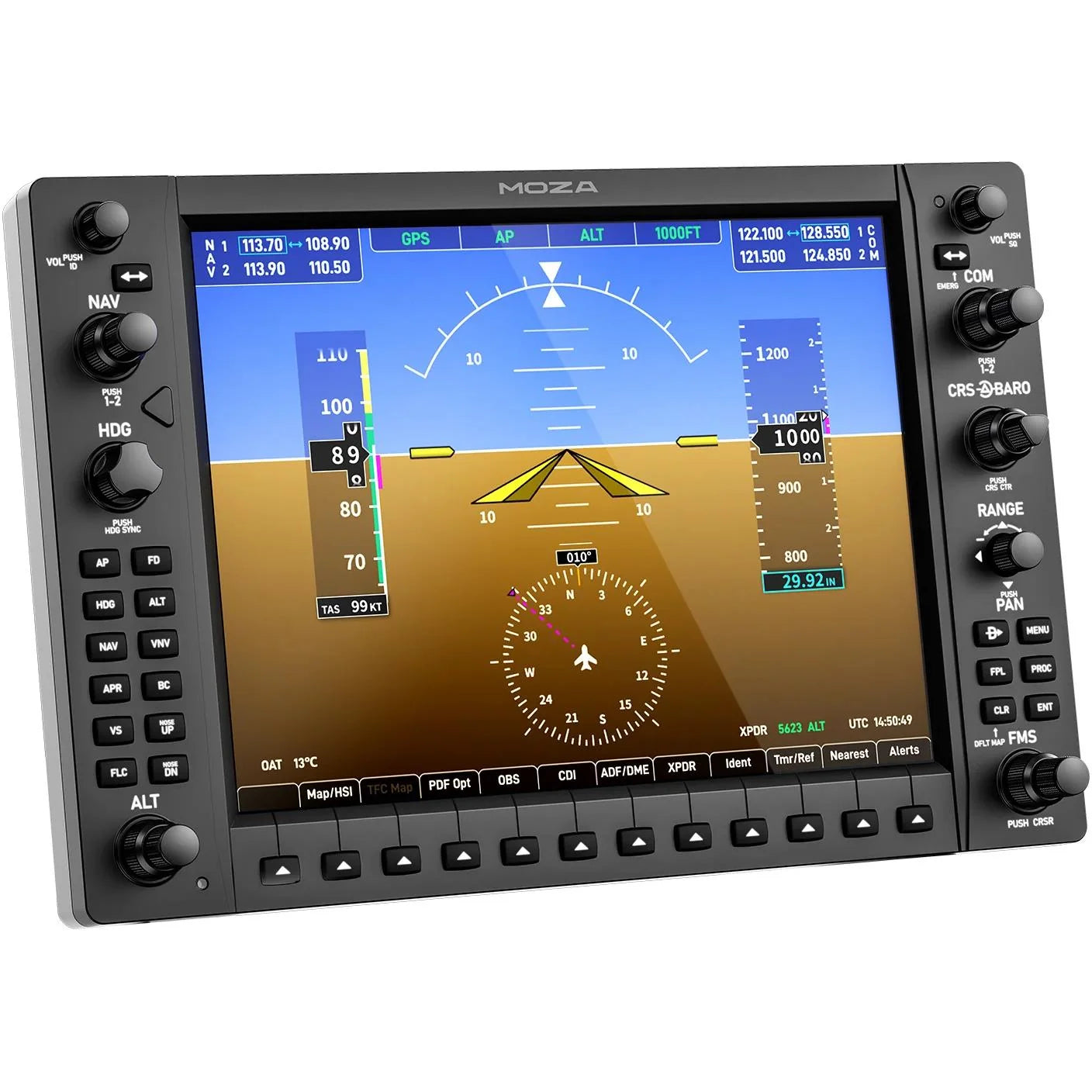

MOZA MGX1000 Instrument Panel

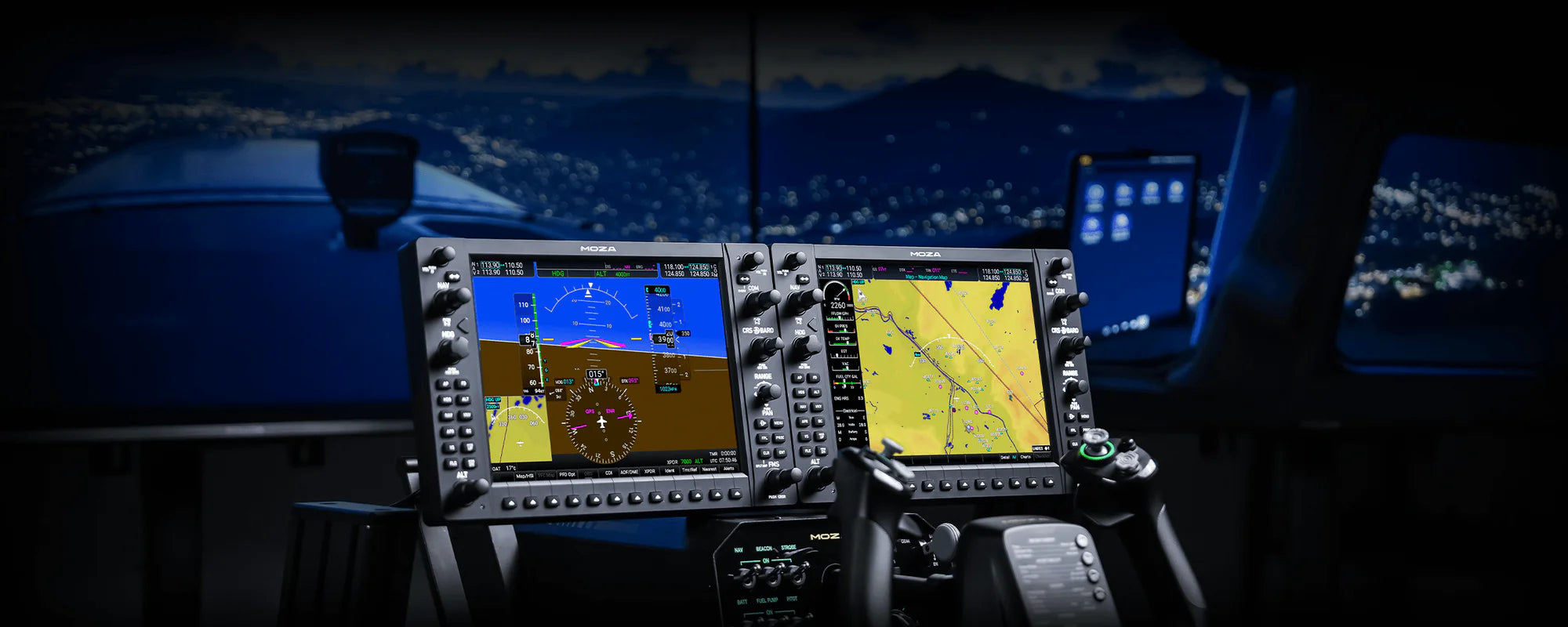

The MOZA MGX1000 Instrument Panel is a G1000-style instrument panel for general aviation simulation, combining a true-size 10.4-inch display, DisplayLink video, tactile avionics controls, and flexible mounting for advanced home cockpit builds.

• Authentic Garmin G1000 Experience
  Experience true-to-size Garmin G1000 simulation with a 10.4-inch IPS display, DisplayLink connectivity, precision controls, and seamless integration with modern flight simulators.
• Authentic Flight Deck Experience
  A precision-engineered 1:1 panel layout recreates the look, feel, and workflow of the Garmin G1000 for an immersive flight experience.
• True-to-Size 10.4" IPS Display
  A 10.4-inch IPS display matches the dimensions of a real G1000, delivering vivid color, sharp detail, and up to 500 nits of brightness.
• DisplayLink Connectivity
  DisplayLink video transmission eliminates the need for HDMI and dedicated GPU ports, simplifying multi-display cockpit setups.
• High-Precision Controls
  Tactile buttons, precision rotary encoders, and a 7-way ALPS joystick deliver responsive, authentic avionics control.
• Adjustable Cockpit Lighting
  Independently adjust screen brightness, character illumination, and button lighting, with real-time synchronization through MOZA Cockpit.
• Seamless Software Integration
  Configure each panel as a Primary Flight Display (PFD) or Multi-Function Display (MFD) through MOZA Cockpit for effortless setup.
• Slim, Lightweight Design
  Engineered with a slim, lightweight profile to reduce mounting stress while making cockpit integration easier and more flexible.
• Flexible Mounting

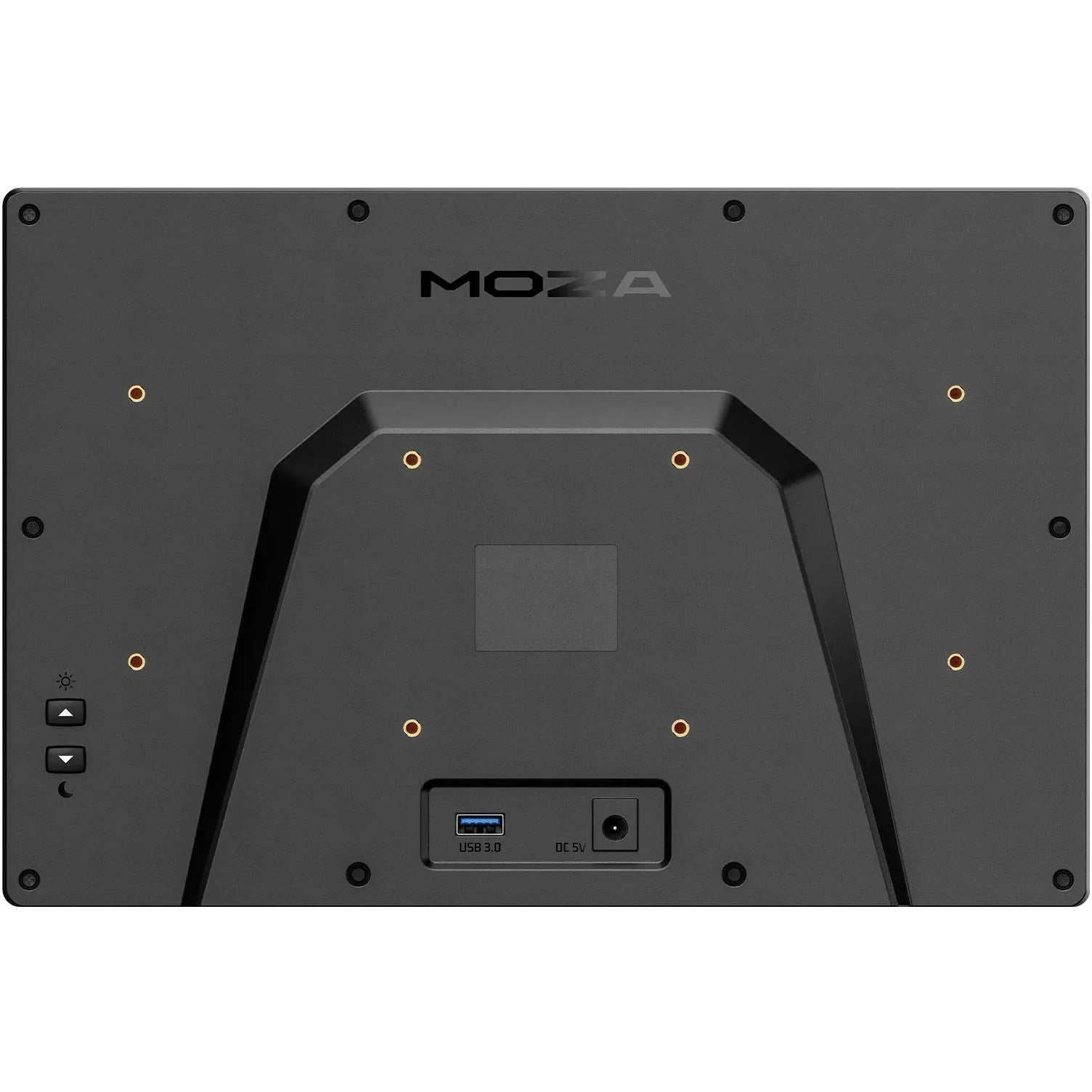

  Supports desktop, aluminum-profile cockpit rigs, integrated chassis mounting, and standard 75 × 75 mm VESA mounting.

Specifications:

• Dimensions: 304 × 201 × 66.8 mm
• Material: ABS + PC
• Weight: 1.17 kg
• Screen Size: 10.4-inch
• Resolution: 1024 × 768
• Connection Ports: USB-A, DC 5 V
• Rated Voltage: 5 V (USB), 5 V (DC)
• Rated Current: 900 mA (USB), 2 A (DC)
• Supported Platform: PC
• Mounting Options: Desktop stand, 75 × 75 mm VESA mount, also supports bottom mounting

Includes:

• MOZA MGX1000 Instrument Panel
• 1.5 m USB 3.0 Type-A Cable
• Desktop stand
• Power adapter
