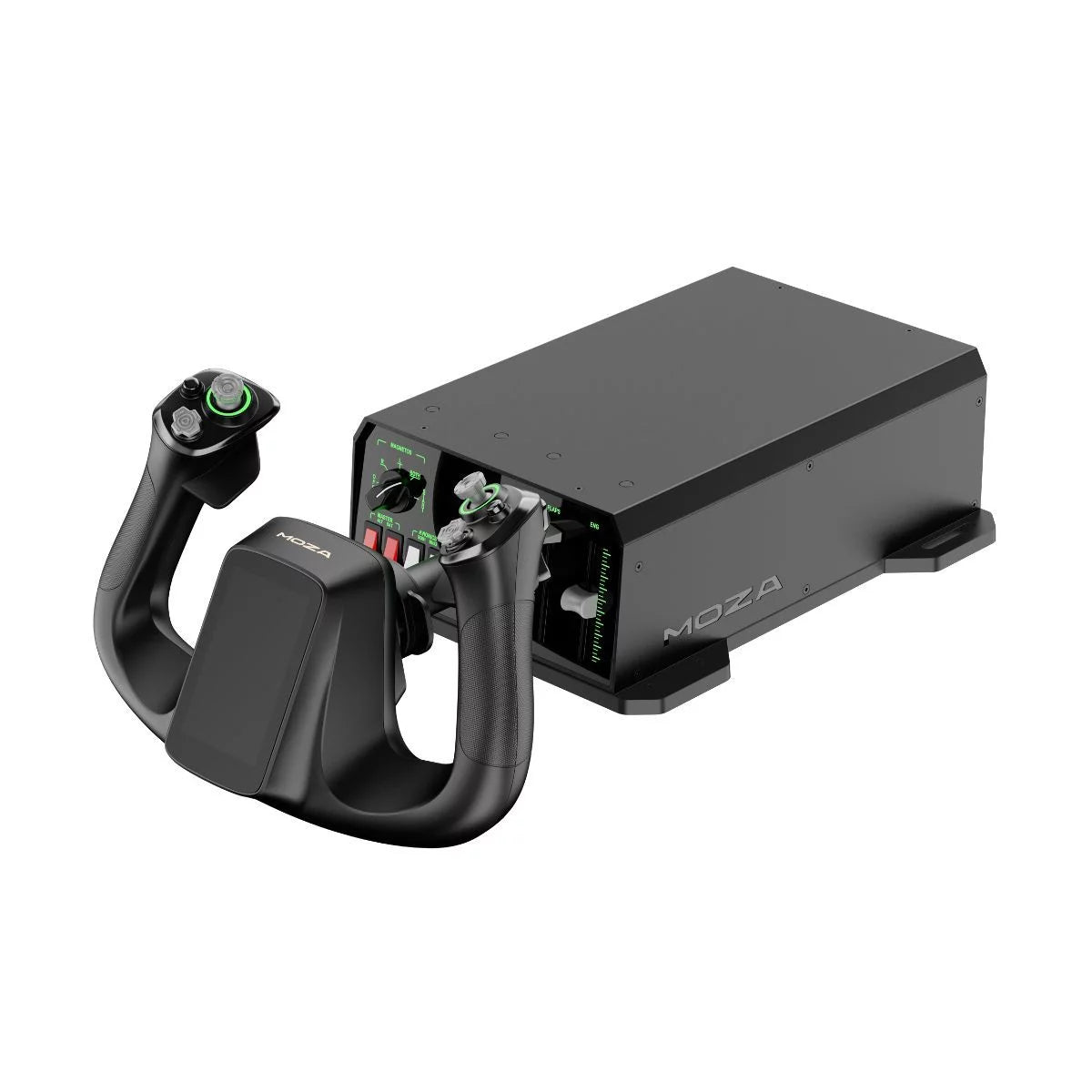

MOZA AY90 Force Feedback Yoke Base

The MOZA AY90 Force Feedback Yoke Base is designed to bring true force feedback to a PC flight simulator.

It delivers 4.2 Nm of torque on the roll axis and 90 N of push-pull force on the pitch axis, with a full 180° range of rotation. Its 15-bit magnetic encoder, integrated cockpit controls and MOZA Cockpit software support allow the MOZA AY90 to reproduce aerodynamic forces, engine vibrations and aircraft response with greater accuracy.

• 4.2 N·m Torque 90 N Push-Pull Force
  Experience true force feedback with 4.2 N·m of roll torque, 90 N (9 kg / 20 lb) of push-pull force, delivering highly realistic control forces and precise aircraft response.
• 180° Full Roll Rotation
  Offers a full 180° roll range (±90°), matching the natural control movement found in real aircraft yokes for smooth and precise handling.
• 95 mm Pitch Travel
  The extended travel allows for smoother, more precise pitch control, delivering the accuracy and realism demanded by professional flight simulation.
• Lightweight, High-Strength Construction
  Built with a durable high-strength composite housing that combines exceptional rigidity with a compact, lightweight design, making it ideal for both desktop and dedicated cockpit installations.

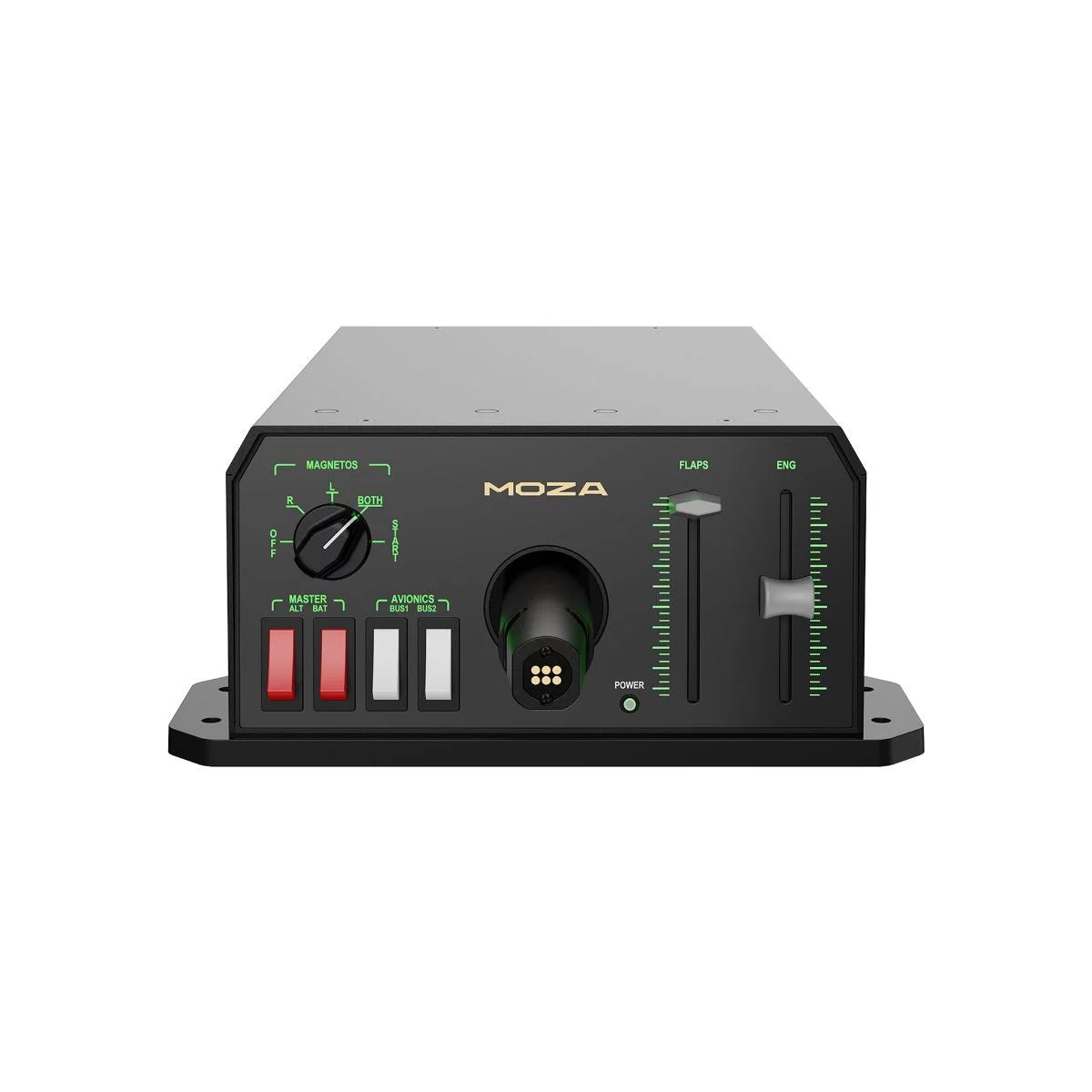

• Multi-Function Control Panel
  The integrated front panel features 1 multi-position rotary knobs, 4 rocker switches, and 2 sliders inspired by classic general aviation cockpits. Every control is fully programmable through MOZA Cockpit for maximum flexibility.
• Aluminum Alloy Quick-Release
  Precision-machined aluminum alloy quick-release mechanism enables fast, tool-free yoke changes while maintaining exceptional rigidity and a secure, play-free connection during demanding flight maneuvers.
• Custom RGB Lighting
  Personalize your setup with 16.7 million-color RGB lighting. Display real-time telemetry such as engine RPM, throttle position, and other simulator data, or customize the lighting to match your cockpit.
• 15-Bit High-Precision Encoder
  Equipped with a high-resolution 15-bit magnetic encoder, delivering exceptionally accurate position tracking and smooth, realistic control inputs.
• Flexible Mounting Options
  Supports both desktop clamp mounting and aluminum profile cockpit installation with standard 80/20-compatible mounting patterns, making integration into virtually any cockpit straightforward.
• Full Software Integration
  Configure every button, switch, knob, axis, and lighting effect through MOZA Cockpit with intuitive setup and powerful customization options.
• Third-Party Accessory Expansion
  Dedicated mounting points on the top of the base support custom gauges, displays, and other accessories. Expand your cockpit further with adapters available through 3D printing or third-party manufacturers.
• Extreme Durability
  From frame load and torsion tests to electronic endurance testing, the system has endured millions of rigorous cycles without failure - ensuring lasting reliability and consistent performance.

Specifications:

• Dimensions: 325 x 252 x 111 mm
• Housing Material: Carbon Fiber Reinforced Composite
• Quick-release Material: Aluminum Alloy
• Button Cap Material: ABS
• Weight: 4.5 kg
• Roll Axis Travel: ±90°
• 5-Way Hat Switch: 1
• Rocker Switches: 4
• Slider Switches: 2
• Power Input: 12V 6A
• Torque: Roll axis: 4.2 Nm | Pitch axis push-pull: 90 N
• Motor Encoder: 15-bit magnetic encoder

Includes:

• MOZA AY90 Force Feedback Yoke Base
• Power adapter
• USB cable
• User manual
